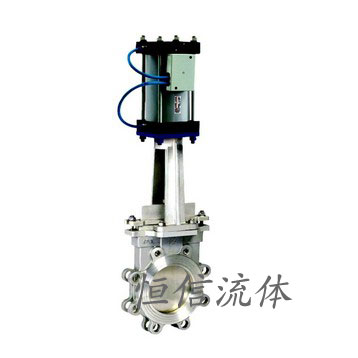

pneumatic double-clip type Knife gate valves1
詳情介紹
The product description
Pneumatic clamping knife gate valve optional accessories
1, single or double control solenoid valve (24V, 220V voltage for choice, when necessary can be selected explosion-proof solenoid valve).
2. Proximity switch.
3. Air source treatment triple parts (including pressure reducing valve, filter and oil mist).
4. Electric/pneumatic valve positioner (for regulating type)
Ii. Main appearance and connection size of pneumatic double-blade gate valve (mm)
| MPa | DN | L | D1 | D2 | H | n-M | MPa | DN | L | D1 | D2 | H | n-M |
| 0.6 | 50 | 43 | 90 | 110 | 335 | 4-M12 | 1.0 | 50 | 50 | 100 | 125 | 335 | 4-M16 |
| 65 | 46 | 110 | 130 | 363 | 4-M12 | 65 | 50 | 120 | 145 | 363 | 4-M16 | ||
| 80 | 46 | 125 | 150 | 395 | 4-M16 | 80 | 50 | 135 | 160 | 395 | 4-M16 | ||
| 100 | 52 | 145 | 170 | 465 | 4-M16 | 100 | 50 | 155 | 180 | 465 | 8-M16 | ||
| 125 | 56 | 175 | 200 | 530 | 8-M16 | 125 | 50 | 185 | 210 | 530 | 8-M16 | ||
| 150 | 56 | 200 | 225 | 630 | 8-M16 | 150 | 60 | 210 | 240 | 630 | 8-M20 | ||
| 200 | 60 | 255 | 280 | 750 | 8-M16 | 200 | 60 | 265 | 295 | 750 | 8-M20 | ||
| 250 | 68 | 310 | 335 | 900 | 12-M16 | 250 | 70 | 320 | 350 | 900 | 12-M20 | ||
| 300 | 78 | 362 | 395 | 1120 | 12-M20 | 300 | 80 | 368 | 400 | 1120 | 12-M20 | ||
| 350 | 78 | 412 | 445 | 1260 | 12-M20 | 350 | 90 | 428 | 460 | 1260 | 16-M20 | ||
| 400 | 102 | 462 | 495 | 1450 | 16-M20 | 400 | 100 | 482 | 515 | 1450 | 16-M22 | ||
| 450 | 114 | 518 | 550 | 1600 | 16-M20 | 450 | 120 | 532 | 565 | 1600 | 20-M22 | ||
| 500 | 127 | 568 | 600 | 1800 | 16-M20 | 500 | 130 | 585 | 620 | 1800 | 20-M22 | ||
| 600 | 154 | 670 | 705 | 2300 | 20-M22 | 600 | 140 | 685 | 725 | 2300 | 20-M27 | ||
| 700 | 165 | 775 | 810 | 2500 | 24-M22 | 700 | 165 | 800 | 840 | 2500 | 24-M27 | ||
| 800 | 190 | 880 | 920 | 2800 | 24-M27 | 800 | 190 | 898 | 950 | 2800 | 4-M30 | ||
| 900 | 203 | 980 | 1020 | 3100 | 24-M27 | 900 | 203 | 1005 | 1050 | 3100 | 28-M30 | ||
| 1000 | 216 | 1080 | 1120 | 3400 | 28-M27 | 1000 | 216 | 1115 | 1160 | 3400 | 28-M30 | ||
| 1200 | 254 | 1295 | 1340 | 3600 | 32-M30 | 1200 | 254 | 1325 | 1380 | 3600 | 32-M36 |
